Terminal Fuse Block,Marine Rated Battery Fuse MRBF Fuse Holder 30-300 AMP,for Compact Mount Marine Rated Battery Fuse

🔴XDURGEM Terminal Fuse Block Marine Rated Battery Fuse (MRBF) 58V DC Max IP66 Waterproof ⏺️Advantage: ⏺️Weatherproof and suitable for harsh environments: ▶️The fuse Holder is built to withstand harsh conditions typically found in small open-cockpit boats and other challenging environments.⏺️Insulating cap for accidental short prevention: ▶️The fuse comes with an insulating cap that helps prevent accidental shorts, enhancing safety and protecting the circuits.⏺️Ignition protected with MRBF fuses: ▶️When used with MRBF fuses, this fuse offers ignition protection, ensuring safe operation in applications where ignition sources are present.⏺️Universal fit and stackable terminals: ▶️The fuse features a new isolated stud design that uses standard M8 (5/16") hardware, allowing for a universal fit.▶️Additionally, the design permits the stacking of terminals, enabling efficient use of space. ⏺️Application: ▶️The fuse block is compatible with fuses that have a maximum voltage rating of 58V and an amperage rating ranging from 30A to 300A.▶️It is designed to fit M8 (5/16") stud size and has an M10 (3/8") mounting hole for easy installation. ⏺️Package Included: ▶️1* MRBF Terminal Fuse Block▶️1* Red Insulator Cap▶️1* Washer▶️1* Lock Washer▶️1* M8 Hex Nut

• 【Explosion-Proof Functionality】: The MRBF fuse holder features ignition protection, making it suitable for installation on gasoline-powered boats. It meets IP66 standards, withstanding powerful water jets to safeguard your safety!

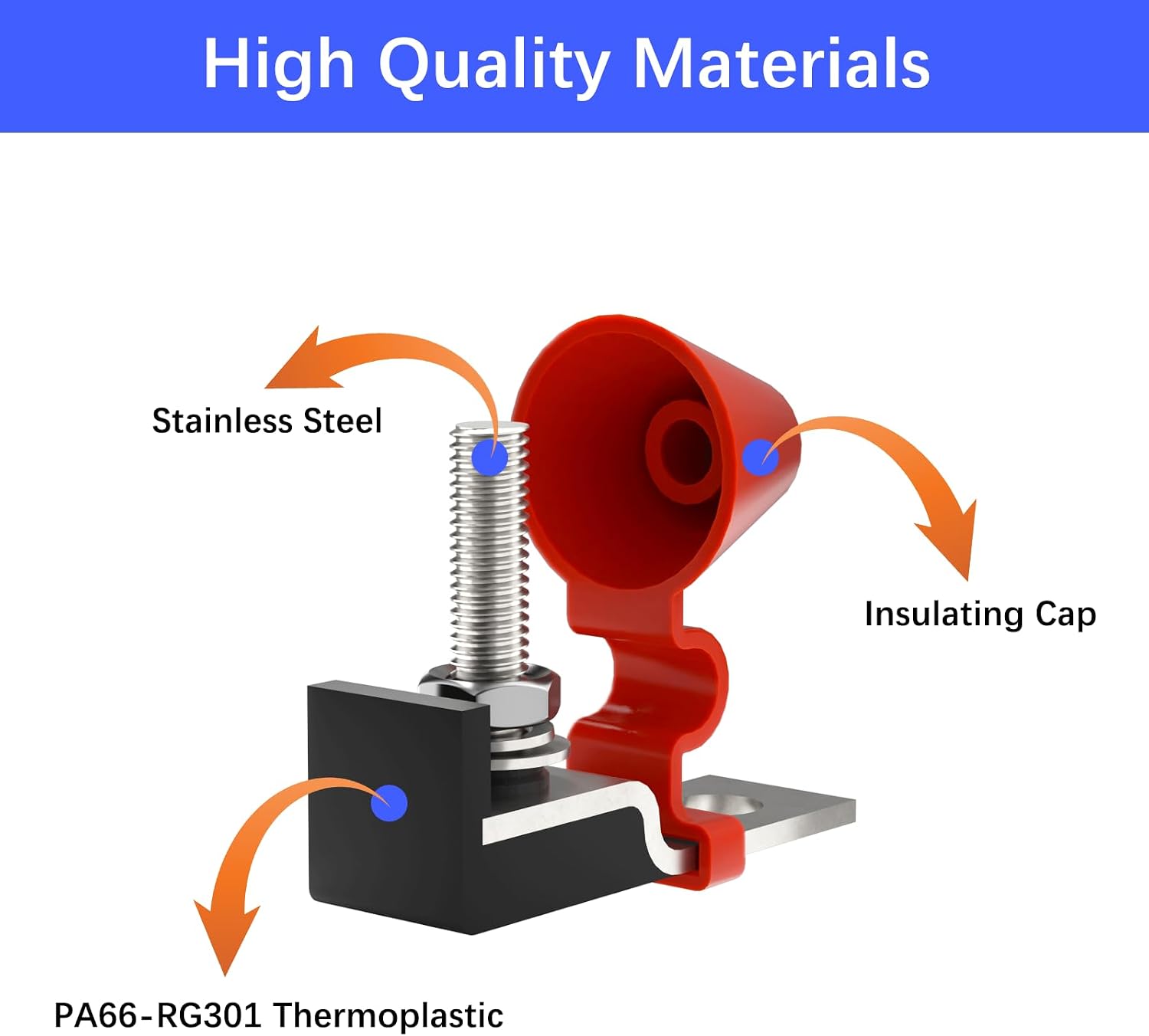

• 【Premium Materials】: The body is crafted from PA66-RG301 thermoplastic, while studs and nuts utilize stainless steel for high-temperature resistance and excellent conductivity.
• 【Simple Installation】: Designed to fit M8 (5/16“) stud dimensions with M10 (3/8”) mounting holes for easy installation. (The MRBF Terminal Fuse Box Assembly includes a complete set: one MRBF terminal fuse box, one red insulating cap, one washer, one lock washer, and one M8 hex nut.)
• 【Applications】: The MRBF fuse holder accommodates fuses with a maximum rated voltage of 58V and a current rating range from 30A to 300A.
• 【Important Notes】: This fuse holder is rated for 10,000 AIC at 14V DC, meeting ABYC requirements for DC main circuit protection in large battery banks.
